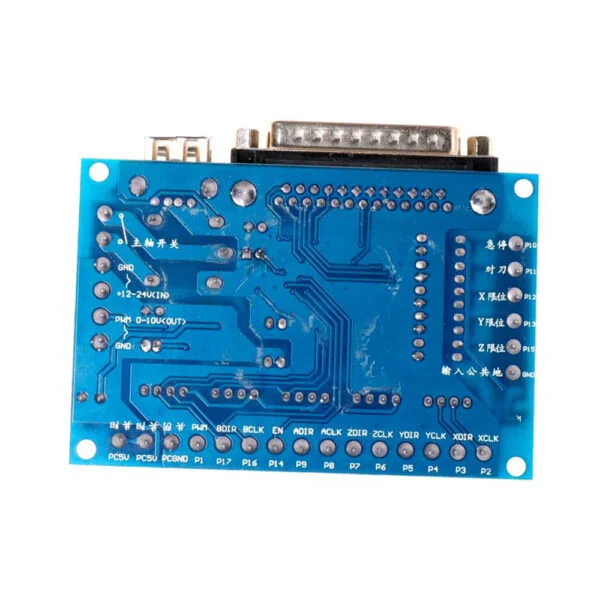

Optocoupler CNC 5 Axis Stepper Motor Driver MACH3 USB

MACH3 Interface Board CNC 5 Axis with optocoupler latest upgrade 5 axis breakout board is specially designed for the CNC single-axis 2-phase stepper driver controller, such as TB6560, M542, M542H, MA860H, 2M542, 2M982, DM542(A), DM860(A) etc. single-axis stepper driver controller series. With this 5 axis breakout board, any 1-5 single-axis stepper driver controllers can be directly controlled by the PC via the MACH3, EMC2, KCAM4, etc. All the way to the relay output port, control spindle switch. Output port P17 mouth. Output port P1 port Open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled. P1 as PWM outputs can be controlled with optocoupler input spindle governor. This can access by a common cathode or common anode input level to a 5V drive.

MACH3 Specification:

• Material: Plastic
• Color: Blue
• Input Power: Through PC USB port or 12-24V power supply
• Compatible Stepper Motor Driver: Max 5, 2-phase Microstep controllers
• Driver type: Pulse and Direction signal control

MACH3 Features:

• • Fully support for MACH3 and other computer software support for parallel port control.
  • USB power support and peripherals powered phase separation to protect computer security.
  • All of the input signals, all the light lotus isolated, which can be accessed emergency stop on the knife, the limit to protect computer security.
  • All the way through the optocoupler isolated 0-10V analogue voltage output can be controlled with the corresponding analogue interface converter to control the spindle speed. Output port P1 port.
  • All the way to the relay output port, control spindle switch. Output port P17 mouth.
  • Open all 17 ports, which can be controlled with an optocoupler input spindle governor.
  • Peripheral wide voltage input,12-24V, and anti-reverse function.

• Can be accessed by a common cathode or common anode input level to a 5V drive

Package Included:

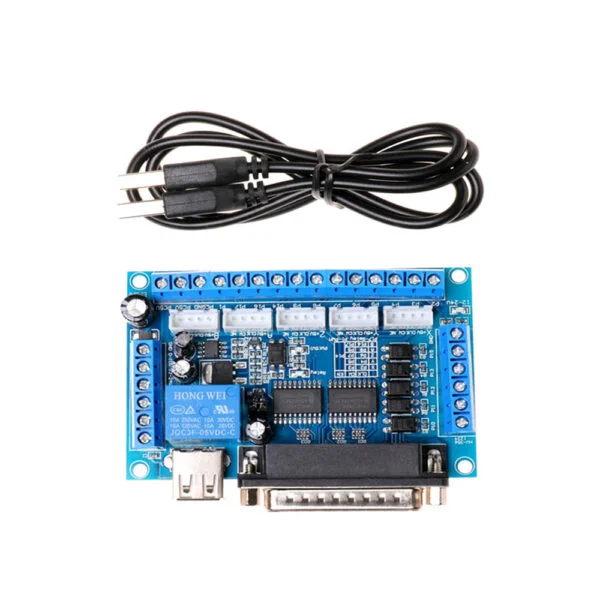

1 x MACH3 Interface Board CNC 5 Axis With Optocoupler Adapter Stepper Motor Driver MACH3 USB
