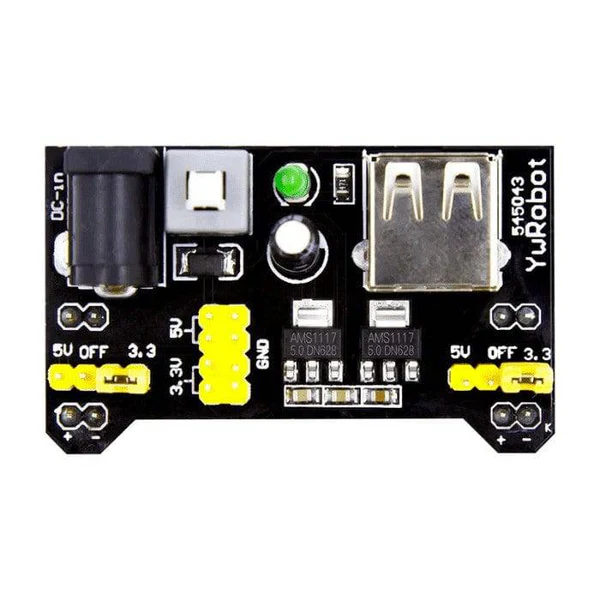

This is a plug-in power supply and the headers below the board simply plug-in to the breadboard. Once plugged in, the voltage rails to both sides on the breadboard then provide power. You then use the yellow jumpers to select the voltage levels required. This is a dual output 3.3 V, 5 V regulated board and you can have either voltage on either rail on the breadboard, which is very useful.
Specification:
Locking ON / OFF Switch
LED Power Indicator
Input Voltage: 6.5 V to 12 V (DC)
Output Voltage: 3.3 V / 5 V
Maximum Output Current: 700 mA
Power Rails 0 V, 3.3 V, 5 V on Breadboard
Two Groups of Header Pins
Features:
Fluctuation two road independent control
Can switch over to 0 V,3.3 V,5 V
On-board two groups of 3.3V, 5V DC output plug pin
Convenient external lead use
Package Included:
1 x Breadboard Power Supply 3.3V & 5V For MB102 Bread Board Arduino Raspberry Pi (Black)
