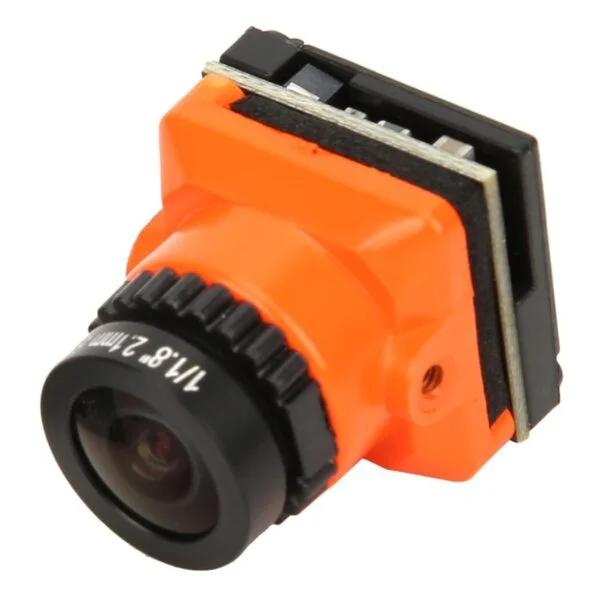

1500TVL CMOS FPV Camera 1/3″ CMOS 1500TVL Mini FPV Camera 2.1mm Lens PAL / NTSC With OSD

If you want to build a drone, a 1500TVL CMOS FPV Camera is one of the most important components to include. The receiver receives video or photos from the FPV camera. As a result, a camera is necessary for the drone’s construction. This 1500TVL CMOS FPV Camera support both PAL and NTSC where PAL is slightly sharper and clearer text display on the screen and NTSC is used for a slightly higher frame rate, and it helps with smoother FPV video playback also the lens can be tilted up to 158 degrees. The night-vision starlight camera is small in size but it has an  Illumination of 0.001Lux/1.2F.

This 1500TVL CMOS FPV Camera uses a high-performance 1/3″ CMOS Camera with a 2.1mm lens for exceptional clarity and resolution. 1500TVL CMOS FPV Camera provides excellent picture quality in all light conditions and Wide Dynamic Range (WDR) and 3D Noise Reduction (3DNR) combine to give superb image clarity and definition. This type of 1500TVL CMOS FPV Camera is used for many of the same applications like Aerial photography and cinematography, remote inspections, security, Military, and Other entertainment purposes.

Specifications:

• Model: MINI B19 Orange
• Power: 5V~30V DC
• Image Sensor: 1/3″ CMOS
• Electronic Shutter Speed: PAL
• Signal System: PAL/NTSC (OSD Internal adjustable)
• Horizotal Resoulution: 1500TVL
• Lens: 2.1mm
• Min illumination: 0.001Lux/1.2F
• Auto Gain Control: LOW/MIDDLE/HIGH
• S/N Ratio: More than 60Db(AGC OFF)
• WDR: D-WDR
• DNR: 3DNR

Features:

• Illumination, the effect is a good, quality-assured, ultra-small size, very suitable for FPV.
• Color fidelity, low illumination, micropower consumption.

Package Included:

1 x 1500TVL CMOS FPV Camera 1/3″ CMOS 1500TVL Mini FPV Camera 2.1mm Lens PAL / NTSC With OSD
