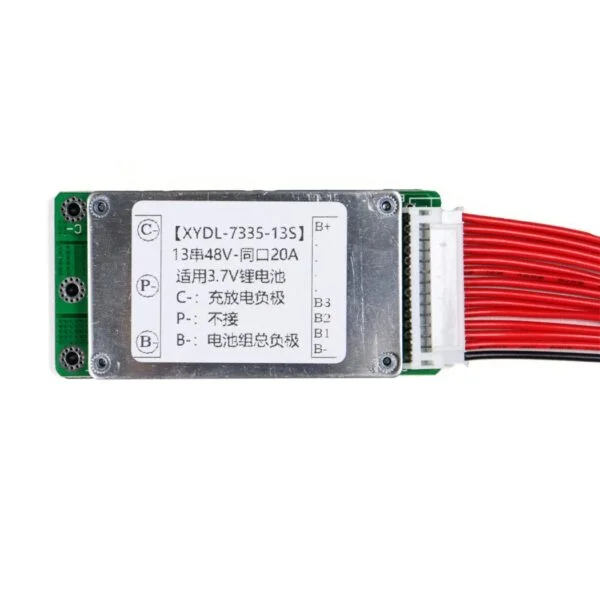

13S 48V 20A Li-ion Battery Protection Board

Original price was: ₹950.00.Current price is: ₹795.00.

Continuous Discharging Current20A
Instantaneous Discharge Current100A
Charging Voltage54.6V
Charging Current Charging Voltage20A(Max.)
Over-charge Detect4.28±0.05V
Protect Delay100ms
Over-charge Release4.08±0.05V
Over-discharge2.55±0.08V
Over-discharge Detect Delay50mS
Release Voltage2.9±0.1V
Detect Voltage150mV
Detect Delay15mS
Current Detect120±5A
Resistance≤15mΩ

13S 48V 20A Li-ion Battery Protection Board is used for Overcharge protection, over-discharge protection function, short circuit protection function and overcurrent protection function.

13S 48V 20A Li-ion Battery Protection Board Specification:

Continuous Discharging Current20A
Instantaneous Discharge Current100A
Charging Voltage54.6V
Charging Current Charging Voltage20A(Max.)
Over-charge Detect4.28±0.05V
Protect Delay100ms
Over-charge Release4.08±0.05V
Over-discharge2.55±0.08V
Over-discharge Detect Delay50mS
Release Voltage2.9±0.1V
Detect Voltage150mV
Detect Delay15mS
Current Detect120±5A
Resistance≤15mΩ

13S 48V 20A Li-ion Battery Protection Board Features:

  • Overcharge protection function
  • Over-discharge protection function
  • Short circuit protection function
  • Overcurrent protection function

Package Included:

1 x 13S 48V 20A Li-ion Battery Protection Board
