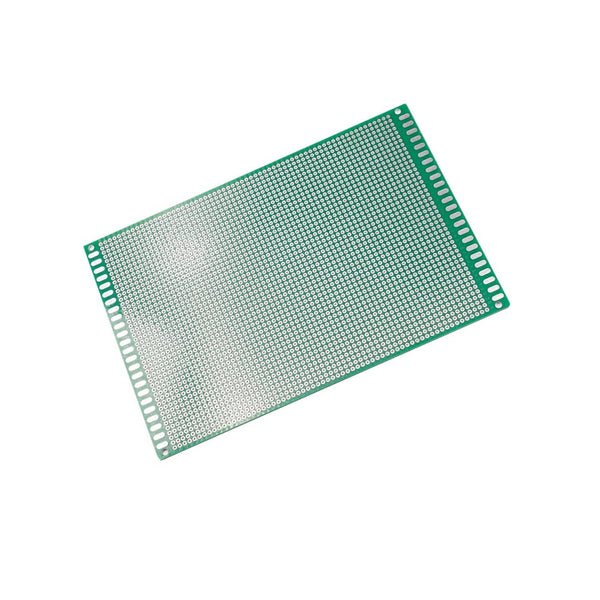

12x18cm Double Sided PCB Board Universal Soldering PCB Board Tinned Through Holes Universal Printed Circuit Proto Board 2.54mm

Description:

The 12x18cm Double Sided PCB Board Tinned Through Holes Universal Printed Circuit Proto Board. This means the PCB has copper traces (conductors) on both sides of the board. Double-sided PCBs allow for more complex circuit designs and can accommodate more components compared to single-sided boards.

This 12x18cm Double Sided PCB Board is designed for prototyping purposes. Prototyping boards often feature a grid of holes or pads spaced at a standard pitch (often 2.54mm or 0.1 inch), allowing components to be easily mounted and interconnected using soldering techniques.

Specifications:

• Material:  FR-4
• Hole Size: 0.8 – 1.0 mm diameter.
• Layers: Double-sided PCB with copper traces on both sides.

Features:

• 12x18cm Double Sided PCB Board is likely to have a solder mask coating applied. A solder mask is a protective layer that covers the copper traces on the board, except where the components are soldered. It helps prevent short circuits and corrosion.
• The holes are typically spaced on a standard pitch, commonly 2.54 mm (0.1 inch) apart. This allows for easy mounting of through-hole components and prototyping.
• The plated holes are pre-tinned/pre-coppered and very solid which makes them very easy to soldering components on.

Package Included:

1 x 12x18cm Double Sided PCB Board, Universal Soldering PCB Board, Tinned Through Holes Universal Printed Circuit Proto Board 2.54mm
