12V Relay Module With Automatic Delay Timer

12V Relay Module With Automatic Delay Timer

Original price was: ₹650.00.Current price is: ₹500.00.

Relay module Features:

Increase the power supply anti-reverse function.
The use of opto-isolated input and output enhanced anti-jamming capability and consumption.
The last setting parameters can be memorized after power off.
A signal terminal voltage signal can be maintained for a long time.
To ensure stability, industrial grade PCB board.

SKU: RS3018 Category: RELAY

Description
Reviews (0)

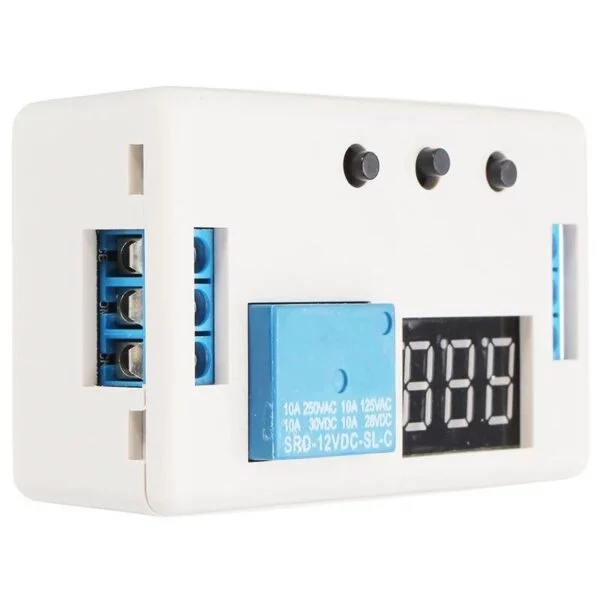

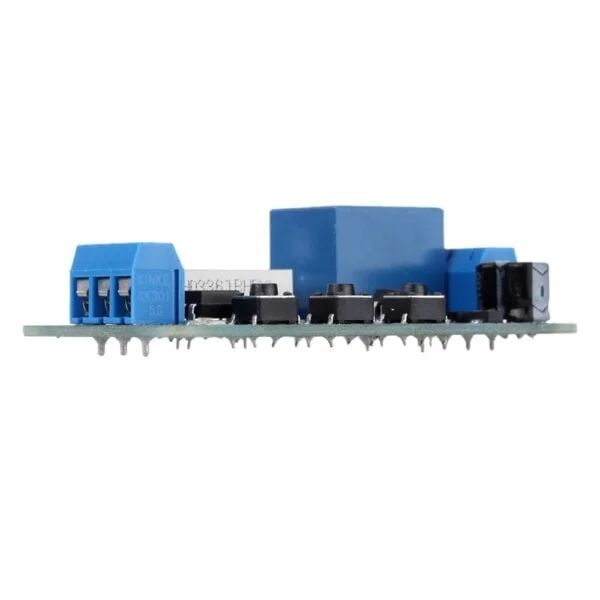

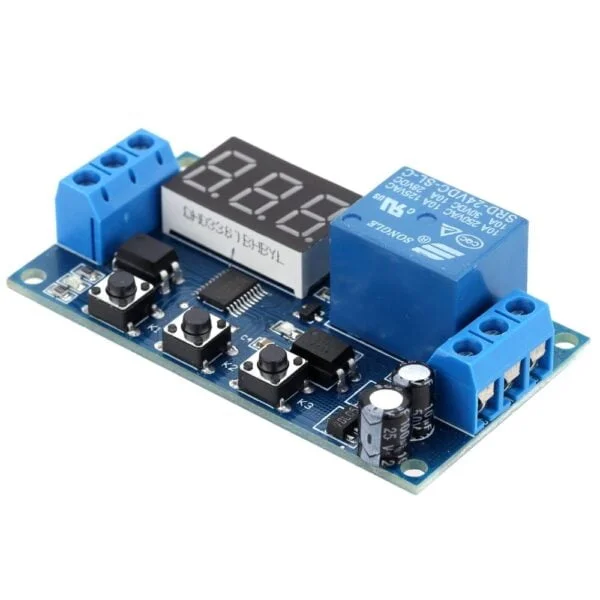

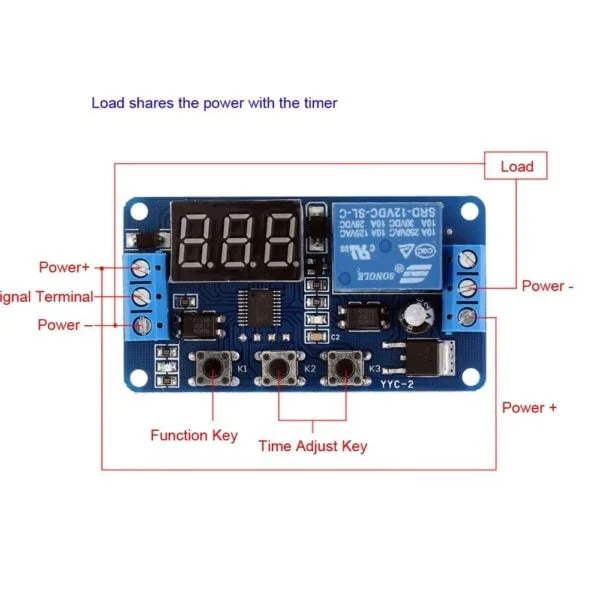

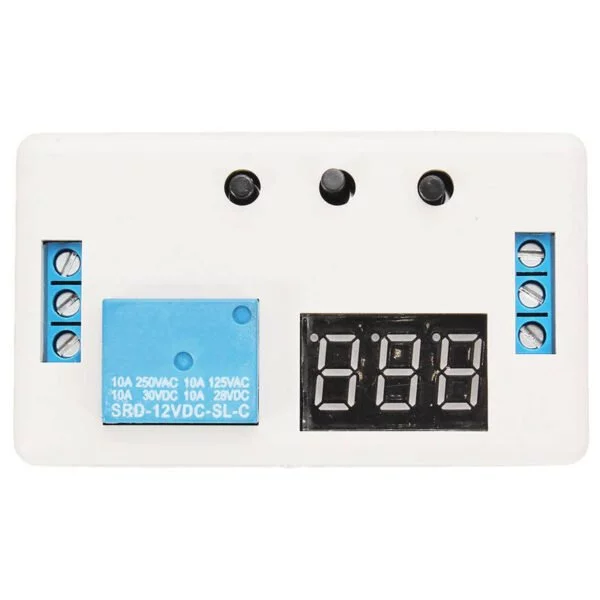

This is a relay module with an automatic delay timer. The module consists of a 12V relay along with a three-digit seven-segment display. The module is based on an N76E003AT20 microcontroller. The module has three buttons, one to control the function and others to set the delay time.

Relay module Specification:

Timing Range(Selectable)	0.1~99.9 seconds 1~999 seconds 1~999 minutes
Operating Voltage	12V DC
Signal Voltage	4 – 20VDC
Output Capacity	Can Control the Load within DC 30V 5A or AC 220V 5A
Static Current	20mA
Working Current	50mA
Operating Temperature	-40 to 85°C

Relay module Features:

Increase the power supply anti-reverse function.
The use of opto-isolated input and output enhanced anti-jamming capability and consumption.
The last setting parameters can be memorized after power off.
A signal terminal voltage signal can be maintained for a long time.
To ensure stability, industrial grade PCB board.
