100W AC-DC Switching Power Supply 85-265V to 24V 4-6A 100W Switching Power Supply Board High-Efficiency 100W AC-DC Converter For Industrial Equipment

Description:

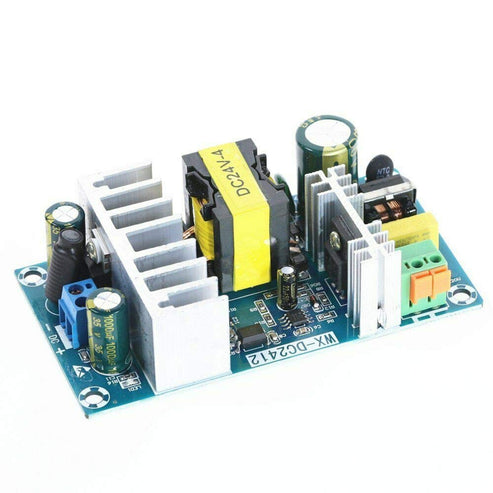

This is a 100W AC-DC Switching Power Supply module that includes a switch regulator and integrates a switch regulator to effectively convert power. The power module converts the power supply from AC85V to 265V (50HZ/60HZ) to DC 24V. Input voltage: AC 85V~265V (50Hz/60Hz), output voltage: DC 24V, output current: 4A~6A, output power: 100W.

The 100W AC-DC 85V-265V to 24V 4A-6A switching power board supports overvoltage protection, overcurrent protection, and short-circuit protection. Easy to install and can be used directly on the motherboard. High efficiency, high power density, low output ripple noise, and high output voltage accuracy. The power module is designed with two heat sinks for better heat dissipation. Dimensions: Approximately 10.65 x 5.7 x 2.8 cm/0.42 x 0.22 x 0.11 inches.

The power module is suitable for industrial power supply and also suitable for equipment power supply when the space is small but the equipment requires high power

Specifications:

• AC input: AC 85-265V
• AC frequency: 50HZ/60HZ
• Output voltage: DC 24V
• Output Current: 4A-6A
• Output Power: 100W
• Modulation: Pulse width modulation

Features:

• The power supply has overcurrent protection, overload protection, and short circuit protection
• AC85 ~ 265V wide voltage input, DC 24V power
• Small size, with an indicator light
• The output power is up to 100W
• Double-sided PCB design, performance is more stable, more reliable

Package Included:

1 x 100W AC-DC 85V-265V to 24V 4A-6A Switching Power Board
