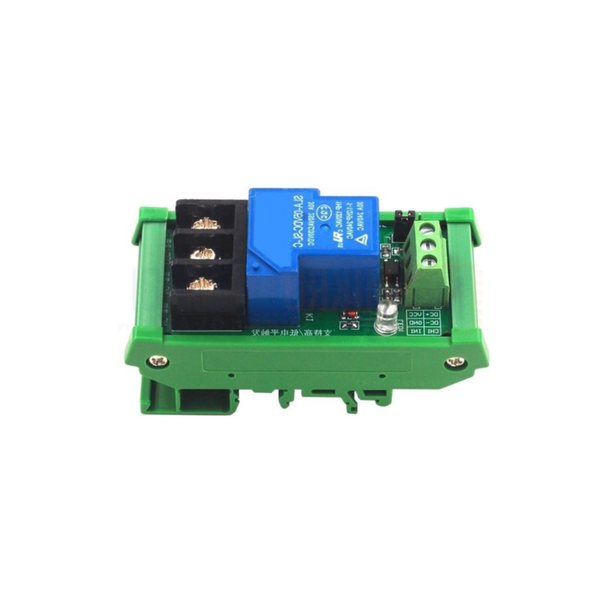

1 Channel 30A 5V Relay Module High Low Trigger Relay Module Guide Rail DIN Rail Mount

Descriptions:

1 Channel 5V 30A Relay Module with Optocoupler Isolation: Built with adherence to international safety standards, this single-channel relay control board features dedicated isolation trenches separating control and load areas. The integrated optocoupler provides crucial input isolation, safeguarding your sensitive control circuitry from high-voltage loads.

Equipped with a genuine, high-capacity 30A relay, this module offers reliable switching for both DC and AC applications, including controlling 220V AC appliances. Clear power and relay status indicators (lit for on, disconnected for off) ensure easy monitoring. Applying an input signal to the designated terminal initiates conduction, making it ideal as a standalone control module.

Specifications:

• Model Type: Relay Module
• No. of Channels: 1
• Trigger Voltage: 5VDC
• Switching Voltage: 250@30AVAC
• Switching Voltage: 30@30AVDC

Features:

• High Impedance Control Pin
• Anti-Malfunction Pull-Down
• NO/NC Contacts
• Triode Relay Drive
• Power Indicator LED
• Control Indicator LED
• 4 Mounting Holes (3.1mm)

Package Included:

1 x 1 Channel 30A 5V Relay Module
