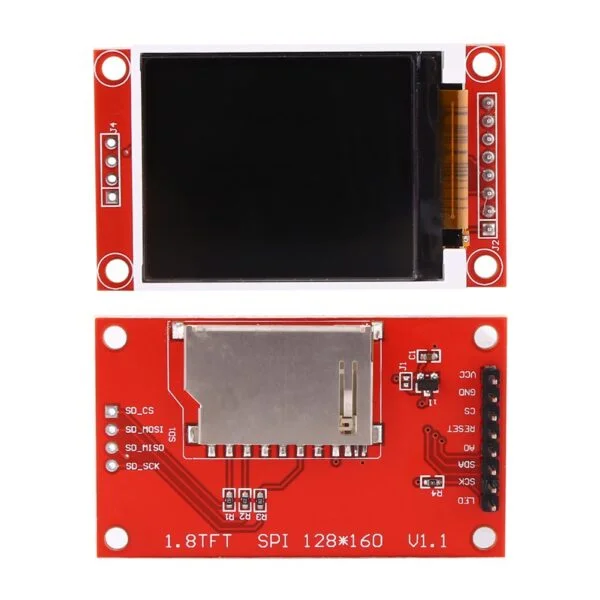

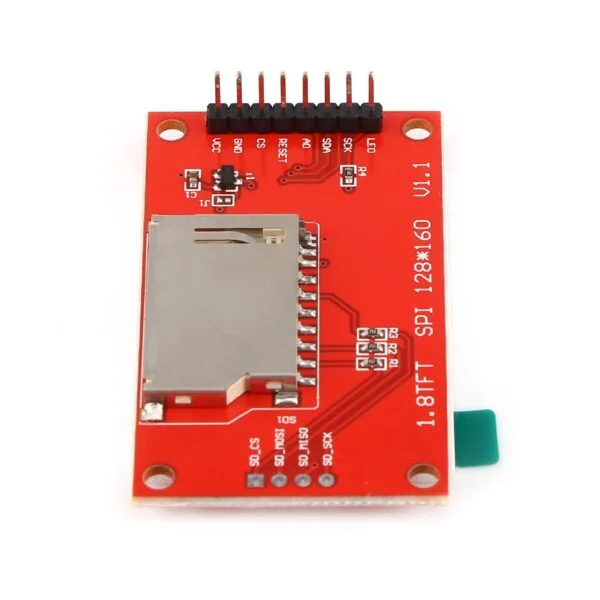

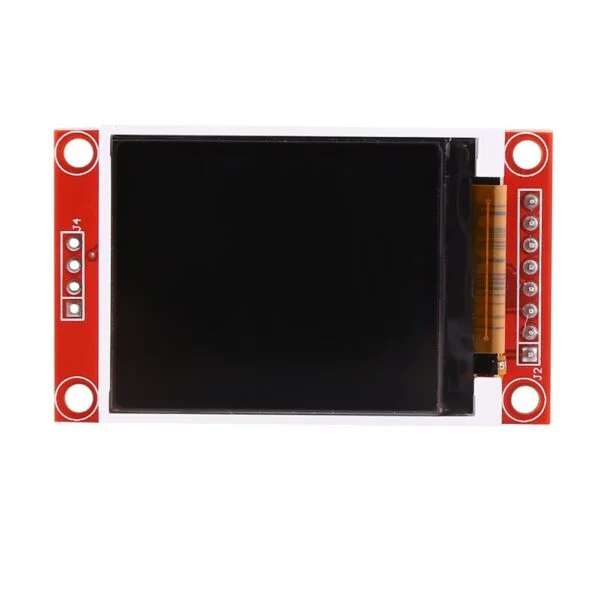

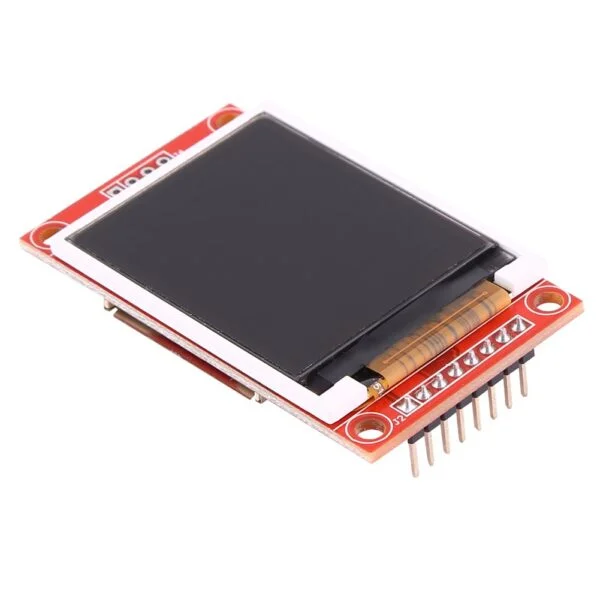

1.8″ Inch ST7735R SPI 128160 TFT LCD Display Module

This is a 1.8″ inch ST7735R SPI 128160 TFT LCD Display Module With PCB. It has a durable hard PCB board and metal, ideal for 1602 interface. This is welded by reflow soldering, no burrs, comfortable and safe. The power supply IC and SD card slot, convenient to use. The transparent protective film covered on the display protect it from damage. Suitable for beginners of LCD color display module, SCM learners and LCD enthusiasts.

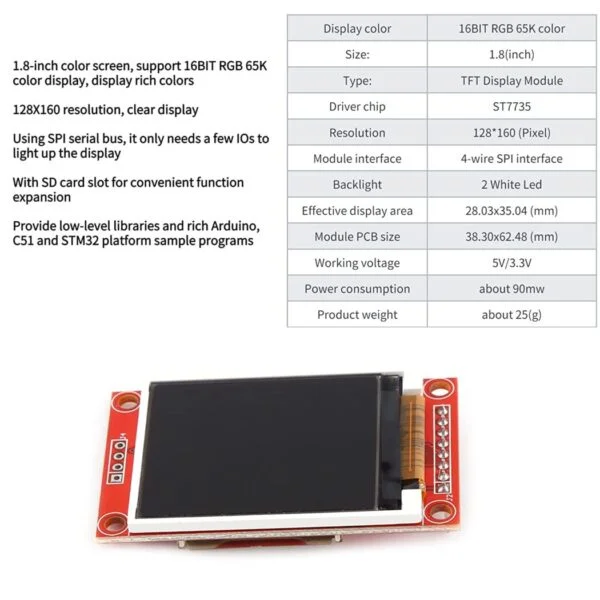

LCD Display Specification:

• Driver IC: ST7735R
• Resolution: 128 x 160 pixels

LCD Display Features:

• Can help you to get rid of the Arduino serial monitor.
• Tested with Latest Arduino 1.6.5.
• The power supply IC and SD card slot, convenient to use.
• The transparent protective film covered on the display protect it from damage.

IO interface:

• RESET: Directly to the microcontroller IO
• CS: Directly to the microcontroller IO
• A0: IO control registers select
• SDA: IO control data transmission
• SCL: IO control SPI bus
• BL: High-Level 3.3V backlight on

Note:

• Please contact us for documents and driver if you need them. Please note this LCD is 3.3V, which can not receive 5V signals from the Arduino, so please use a 1k series resistors between GPIO lines on a 5V Arduino and this LCD, power this LCD with 5V but drive it with ‘level-shifted resistor’ GPIO lines.
• Besides, you could use the mci-friend 2.8 inch TFT LCD library to get it to work, it will work fine with the Mega or Uno.

Package Included:

1 x  1.8″ inch ST7735R SPI 128160 TFT LCD Display Module with PCB for Arduino
